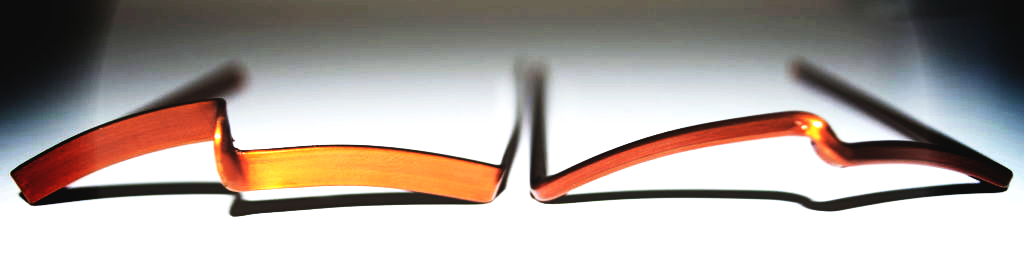

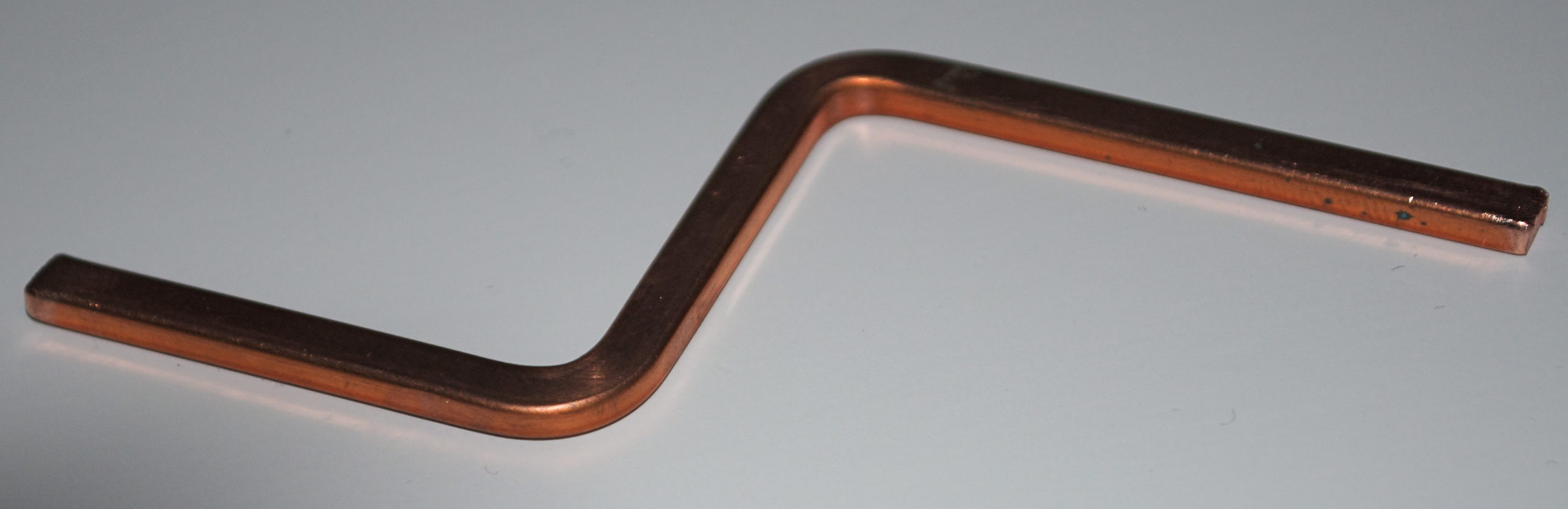

WINDING AC STATOR COILS

RECTANGULAR OR SQUARE, HIGH OR LOW PROFILE

LEG LENGTH UP TO 18″

COPPER FROM 0.041″ THICK TO 0.226″ WIDE

REMOVAL OF INSULATION FROM ENDS

0.25″ TO 6.0″

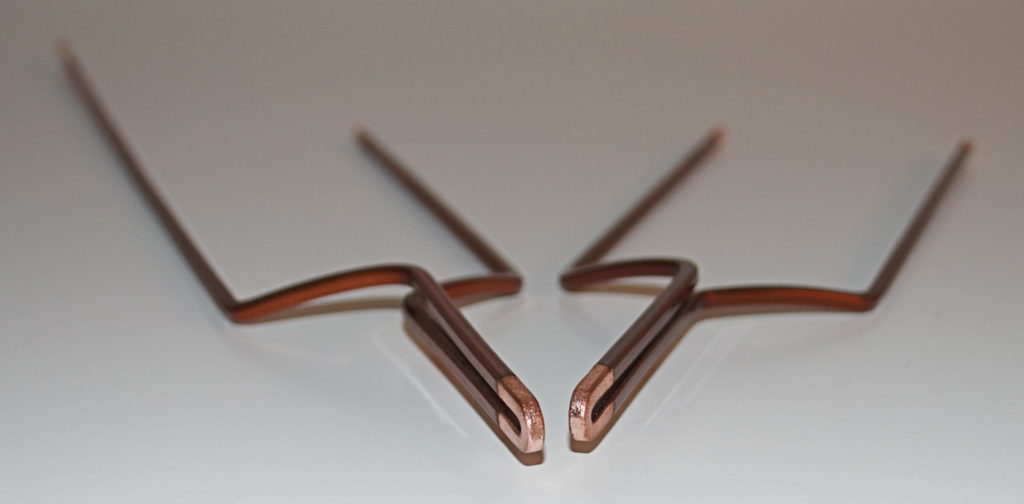

HAIRPIN COILS

COPPER 0.045″ THICK TO 0.200″ WIDE

LEG LENGTH UP TO 11″

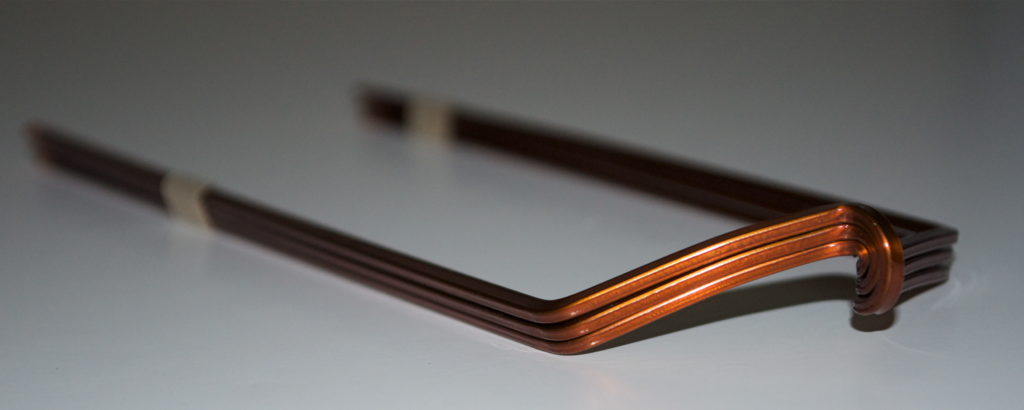

MULTIPLE STACK HAIRPIN COIL SETS

REMOVAL OF INSULATION FROM ENDS

0.25″ TO 6.0″



BRAZING SLUGS

0.078″ – .292″ WIDE

0.087″ – .187″ HIGH

0.120″ – AND UP FOR LENGTH

LINED WITH 0.015″ THICK SILVER

USING SPECIAL PROPRIETARY PROCESS

BARE COPPER SHEET OR RECTANGULAR BAR

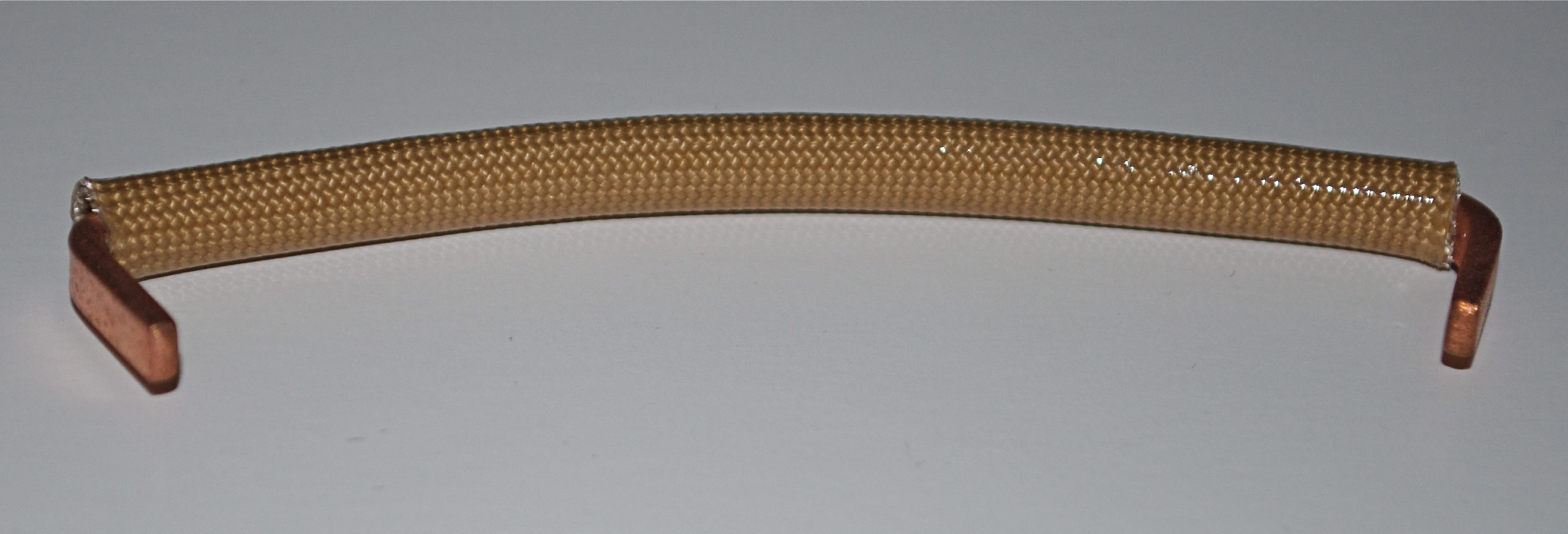

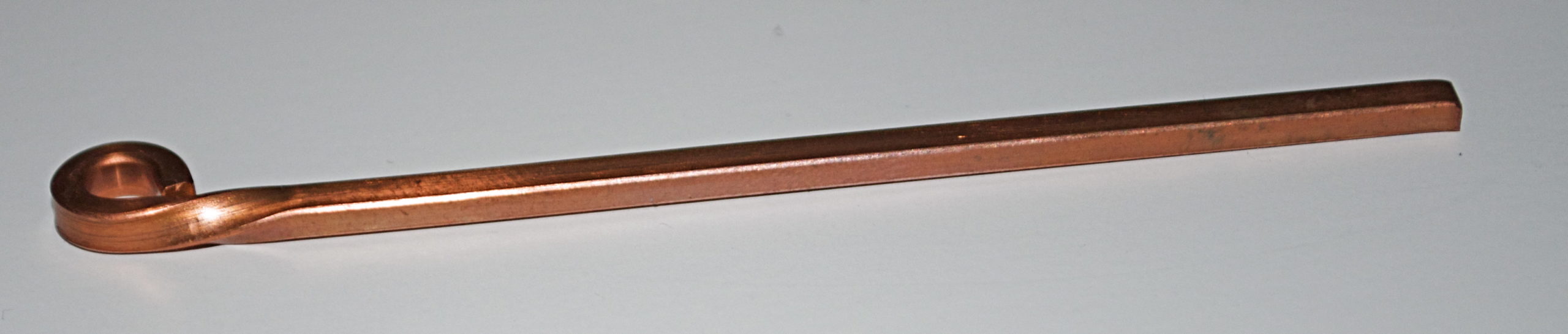

LEADS AND JUMPERS



COPPER BASED, BARE OR INSULATED

PLATING AND SLEEVING IF REQUIRED

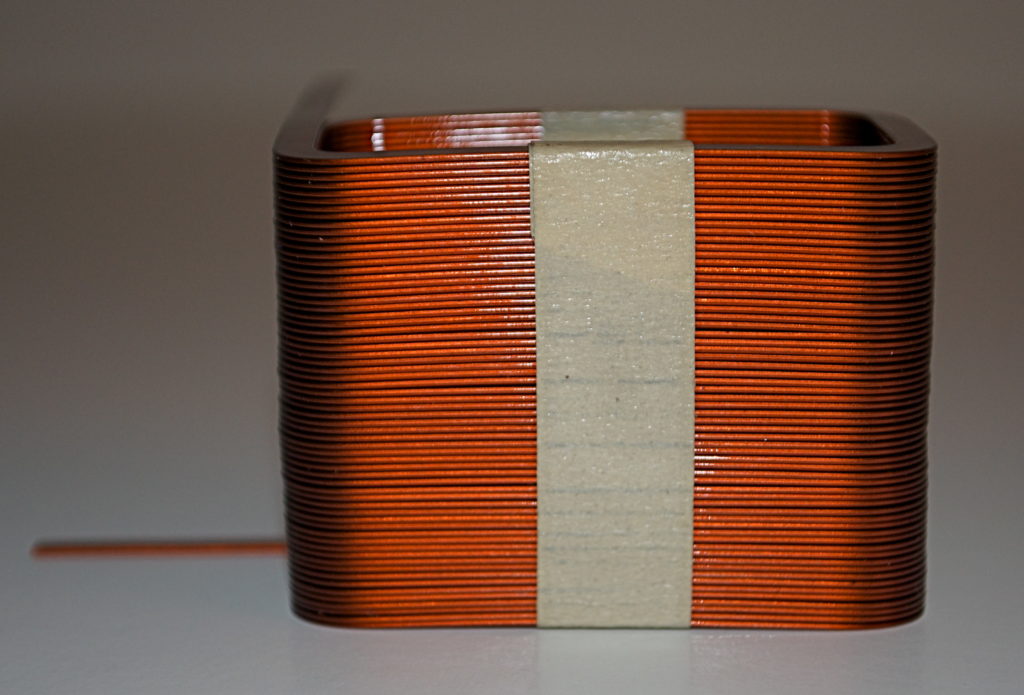

CONTINUAL WIND COILS

BARE OR ML COATED COPPER RIBBON WIRE. RECTANGULAR OR OVAL DESIGN. FLEXIBLE IN WIDTH AND LENGTH FROM 1.5″ – 4.5″ FOR THE BASIC COIL EXCLUDING LEAD ENDS.

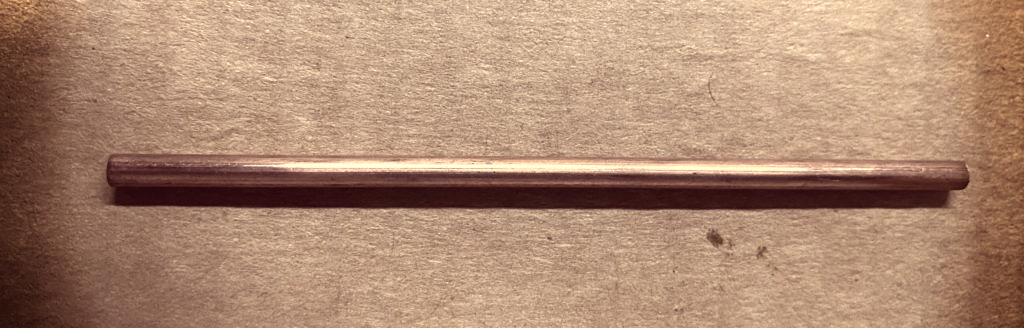

ROTOR RODS

COPPER ROD CUT TO SIZE 10,11,12,&14 GAUGE

STRAIGHT CUT ENDS -CHAMFER ON LARGE GAUGE COPPER



ROTORRETAINER BANDS

STAINLESS STEEL STRAP

0.010″ – 0.025″ THICK

0.125″ – 0.250″ WIDE

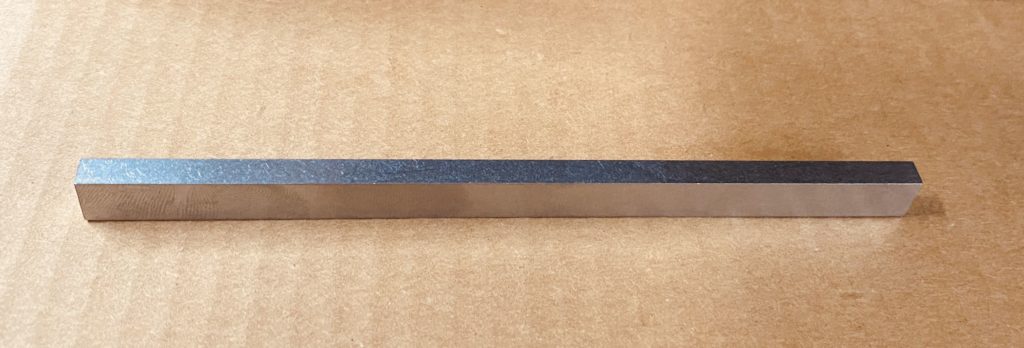

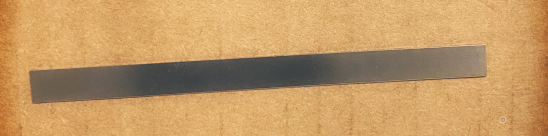

STATOR BARS

COLD DRAWN STAINLESS STEEL BARS TO CUSTOMER REQUIRED DIMENSION.
